Weights & Dimensions Metric
Operation weight CECE * 370 kg
A = Machine length 1142 mm
B = Machine width 640 mm
C = Machine height * 580 mm
Frequency 60 Hz
Centrifugal force 55 kN
Required oil quantity 70-110 l/min
Required operating pressure max 150 bar
Maximum back pressure 30 bar
Recommended size of the carrier < 12 t
* with mechanical positioner

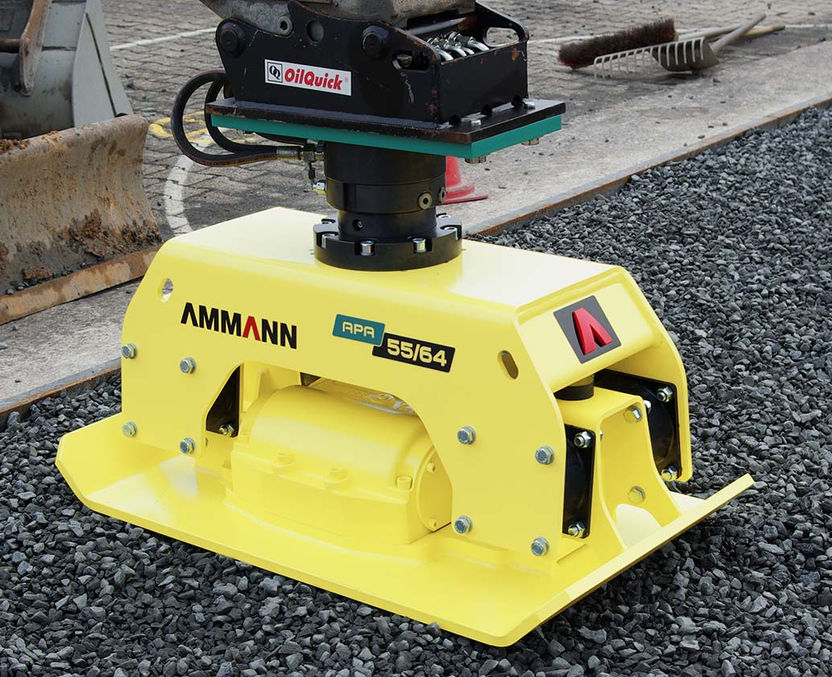

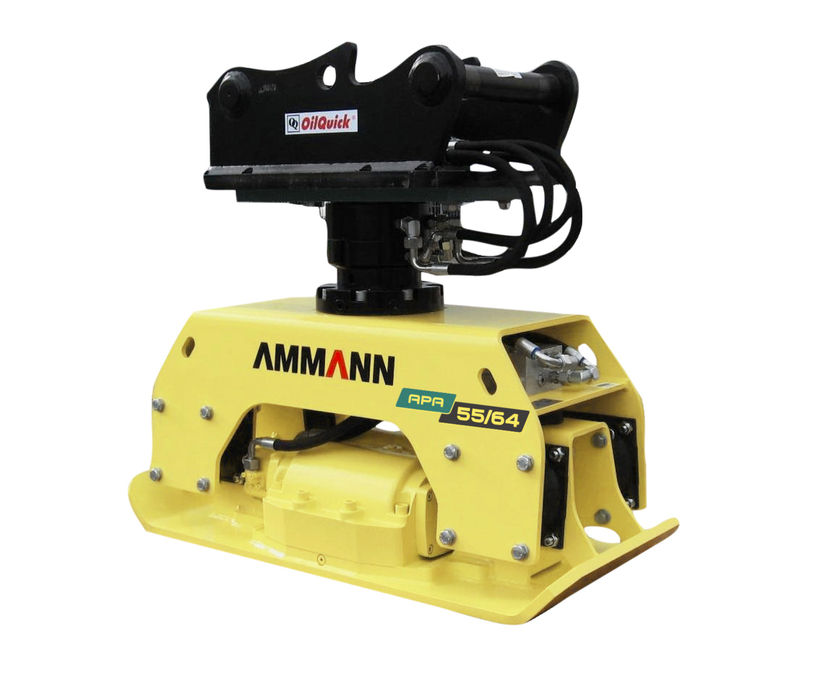

With its larger working width of 640 mm, the APA 55/64 is the perfect fit for urban jobsites and for applications in more sensitive surroundings.
The compactor is 370 kg, light given its width. It is suited for medium-sized excavators with more than 5 tonnes of operating weight.
The compactor can be mounted in a few minutes and does not require hydraulic quick coupling devices. Only two hydraulic hoses are needed.
The plate is equipped with a twin-shaft directional exciter featuring a relatively high frequency and low amplitude, which helps protect both the excavator and surrounding buildings.
Patented vibration limitation system protects the excavator frame and operator
2-shaft directional exciter
Self-blocking mechanical rotating device
Rubber bushings prevent metal-on-metal contact under extremely high pressures
Runs on hydraulics, reducing emissions and fuel consumption
Maintenance-free exciter unit
Vikt: 370 kg
Bredd: 640 mm
Frekvens: 60 Hz
Centrifugal kraft: 55 kN
