Weights & Dimensions Metric
Operation weight CECE * 950 kg
A = Machine length 1142 mm
B = Machine width 740 mm
C = Machine height * 1350 mm
Frequency 36 Hz
Centrifugal force 82 kN
Required oil quantity 150 l/min
Required operating pressure max 250 bar
Maximum back pressure 10 bar
Recommended size of the carrier 12–25 t
* with mechanical positioner

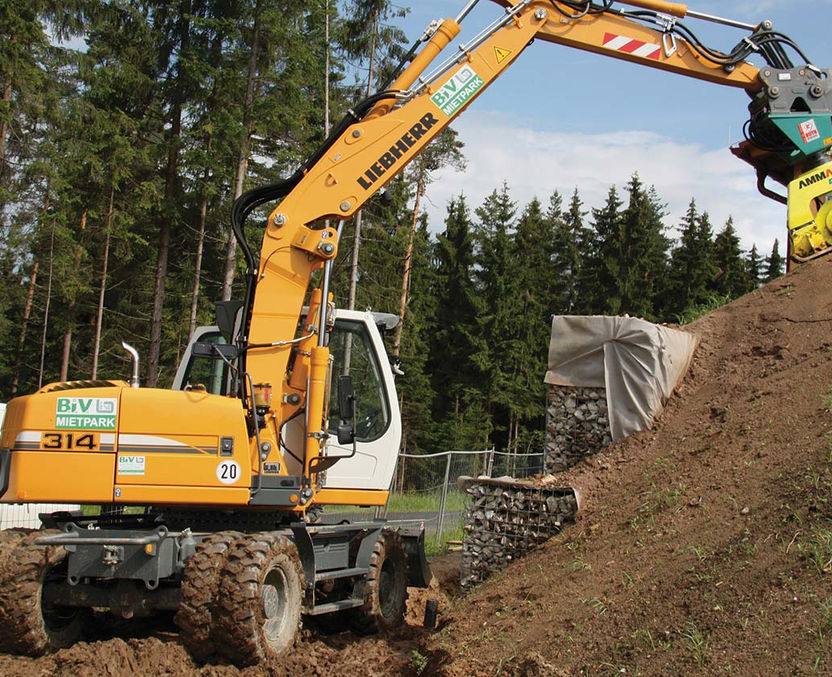

The APA 75/74 is in the large class of Add-On Compactors from Ammann. It is built for 10-tonne to 40-tonne excavators – and for applications where a strong compaction performance is required.
The APA 75/74 has the same weight and width as the 72/74, but offers more centrifugal force at 84 kN.
The plate is powerful and delivers impressive compaction results. It is able to compact layers as thick as 1 metre – substantially more than a vibratory plate. This helps save significant time and resources.
Versatility and robust design also helps the plates stand out. They are reliable and ready to go at any time. And they can reach locations that traditional vibratory plates simply cannot access.
Patented vibration limitation system protects the excavator frame and operator
Self-blocking mechanical rotating device
Rubber bushings prevent metal-on-metal contact under extremely high pressures
Runs on hydraulics, reducing emissions and fuel consumption
Maintenance-free exciter unit
Available without rotary device for excavators that are already equipped with a tilt rotator
Vikt: 950 kg
Bredd: 740 mm
Frekvens: 36 Hz
Centrifugal kraft: 82 kN
