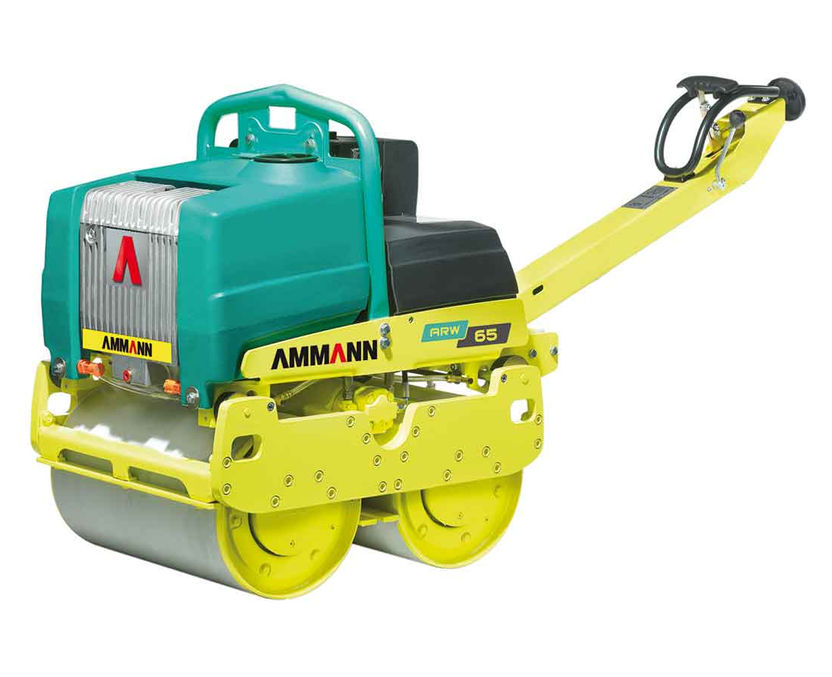

ARW 65 YANMAR DIESEL

Hydrostatic adjustable eccentric weights that are productive in soil and asphalt applications

Hydraulic pump for hydrostatic drive and steering; no V belt

Ergonomic dead man’s handle for operator safety

Large 60-litre water tank for compaction work on bituminous material

Easy access to all service points

Weights & Dimensions

Operation weight CECE 712 kg

Net weight standard Machine 679 kg

A = Machine length 2288 mm

B = Drum axle width 500 mm

C = Drum diameter 400 mm

D = Machine height 1110 mm

E = Transport height 1835 mm

F = Machine width 720 mm

G = Drum width 650 mm

Engine

Engine Yanmar L100N

Fuel Diesel

Engine Output 8,3 HP / 6,1 kW

at RPM 2600

Fuel consumption 1,2 l

Compaction Forces

Max. Vibration frequency 60 Hz

Max. Centrifugal force 11/21 kN

Linear pressure 5.5 kg/cm

Max. compaction depth (soil) 20/15 cm

Max. compaction depth (sand) 30/25 cm

Miscellaneous

Speed (forward) 4 km/h

Speed (backward) 2.5 km/h

Gradeability w./w.o. vibration 25 % / 45 %

Fuel capacity 4.7 l

Hydraulic oil capacity 20 l

Water tank capacity 60 l

..........

Vikt: 712 kg

Trumbredd: 650 mm

Max. vibration frekvens: 60 Hz

Max. centrifugalkraft: 11/21 kN
