ARX 110

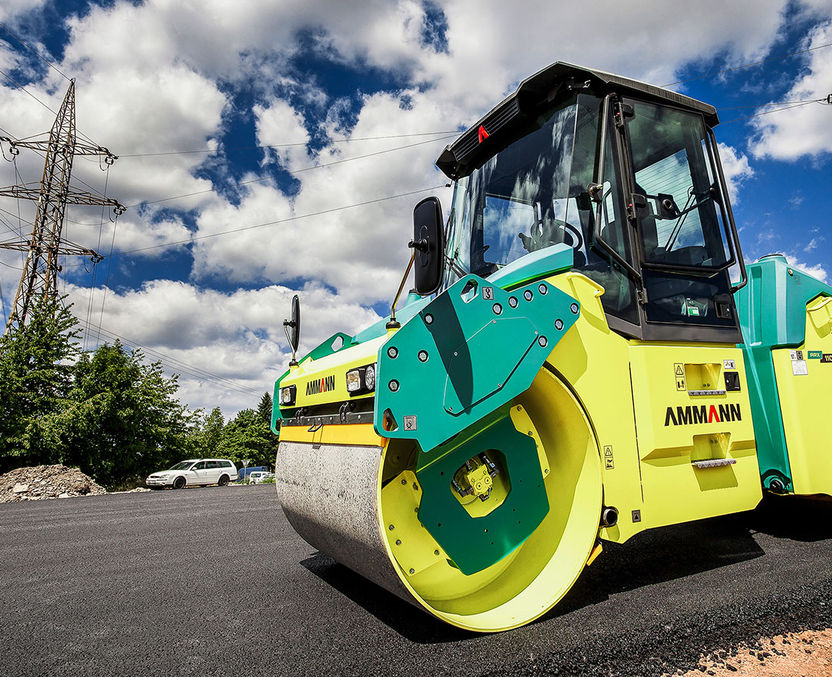

The Ammann ARX 110 Tandem Roller provides features and benefits that ultimately lead to added value for owners of the heavy compactor.

Compaction output is high and the system efficient. Each drum has an independent vibratory pump. The roller also features a heavy-duty, two-stage vibrator and easy adjustment of amplitude and frequency.

A single-drive pump makes for easy service and maintenance. The cab’s design provides comfort that helps the operator stay focused and productive throughout the shift.

A differential lock is standard, while the optional ACEforce system provides a host of benefits including measurement and documentation, evaluation of material stiffness, operator guidance.

An independent vibratory pump for each drum

Heavy-duty, 2-stage vibrator

Simple adjustment of amplitude/frequency

Combination version available

Chip spreader for project flexibility

Single-drive pump

Differential lock

Articulated steering

Articulating oscillation joint

Spacious, comfortable and quiet cab

Excellent visibility to drum surfaces, edges and spraying bars

Rotating and sliding seat

Multifunctional display in steering wheel

Tiltable and adjustable steering column

Control switches on armrest

On-board diagnostics

Easy access to all service points

ARX 110 ARTICULATED TANDEM ROLLER (EU Stage IV / US EPA Tier 4f)

DIMENSIONS

A = MACHINE LENGTH 4720 mm

B = WHEELBASE 3500 mm

C = MACHINE HEIGHT 3000 mm

D = MACHINE HEIGHT (REMOVED CAB / ROPS) –

E = DRUM WIDTH 1680 mm

F = MACHINE WIDTH 1800 mm

H = GROUND CLEARANCE 300 mm

I = DRUM DIAMETER 1220 mm

J = DRUM SHELL THICKNESS 22 mm

MISCELLANEOUS

BRAKES OPERATING Hydrostatic

BRAKES PARKING Mechanical multiple-disc

BRAKES EMERGENCY Mechanical multiple-disc

FUEL TANK CAPACITY 220 l

VOLTAGE 24 V

WEIGHT & DRIVING CHARACTERISTICS

ARX 110 / ARX HF ARX 110 A

OPERATING WEIGHT 10 400 kg 10 120 kg

MAXIMUM WEIGHT 11 860 kg 11 580 kg

STAT. LIN. LOAD OF FRONT DRUM 31 kg/cm 30.2 kg/cm

STAT. LIN. LOAD OF REAR DRUM 30.9 kg/cm 30.1 kg/cm

MAX. TRANSPORT SPEED 10.5 km/h 10.5 km/h

MAX. WORKING SPEED – –

CLIMBING ABILITY WITH / WITHOUT 25 % / 30 % 25 % / 30 %

TURNING RADIUS INNER (EDGE) 5470 mm 5470 mm

CRAB MODE 170 mm 170 mm

COMPACTION FORCES

ARX 110 / ARX 110 A ARX 110 HF

FREQUENCY I 42 Hz 46 Hz

FREQUENCY II 52 Hz 67 Hz

FREQUENCY ACE MIN. / MAX. – –

AMPLITUDE I 0.82 mm 0.6 mm

AMPLITUDE II 0.35 mm 0.22 mm

AMPLITUDE ACE MIN. / MAX. – –

CENTRIFUGAL FORCE I 120 kN 105 kN

CENTRIFUGAL FORCE II 78 kN 82 kN

CENTRIF. FORCE ACE MIN. / MAX. – –

ENGINE

MANUFACTURER Deutz TCD3.6 L4

POWER ACCORDING TO ISO 14396 74.4 kW (100 HP)

MAXIMUM TORQUE 410/1600 Nm/rpm

ENGINE COMPLIES WITH EMISSION REGULATIONS EU Stage IV / US EPA Tier 4f

..........

U Stage IV | EU Stage IIIA

Trumbredd: 1680 mm

Vikt: 10 400 kg | 10 310 kg
